ANDERSEN 72ST Self Tailing Electric Winch Variable Speed Above Deck 24v

The ANDERSEN 72ST Self Tailing Electric Winch Variable
Speed Above Deck 24v is a compact motor especially
developed for use as a winch motor. This Above Deck version Above
Deck, features the winch mounted directly on the motor. This motor
is highly efficient, with an impressive line speed and first-rate
maximum load. The unit is extremely easy to install and is of
course compatible with the ANDERSEN Modular Power System™.

Compact
This motor comes in the size and shape of a winch but with
integrated motor, gears and power control to make one COMPACT unit.
That means no extra control boxes, all cables are connected
directly to the unit. The motor is built on an entirely new
commutator principle using no carbon brushes, resulting in the
virtual elimination of wear and tear. This new approach to motors
also provides other advantages; including 30-50% less power
consumption compared to a conventional electric motor.

ANDERSEN 72ST Self Tailing Electric Winch Variable Speed
Above Deck 24v Features:

• Compact in design integrating motor, gears and power controls
  into one unit
• Impressive line speed and first rate maximum load
• Easy to install and compatible with the ANDERSEN Modular Power
  System™.
• Version: Above deck
• Winch mounted directly on the motor
• Motor built without carbon brushes eliminates wear and
  tear.
• 30-50% less power consumption compared to conventional electric
  motors

ANDERSEN 72ST Self Tailing Electric Winch Variable Speed
Above Deck 24v Specifications:

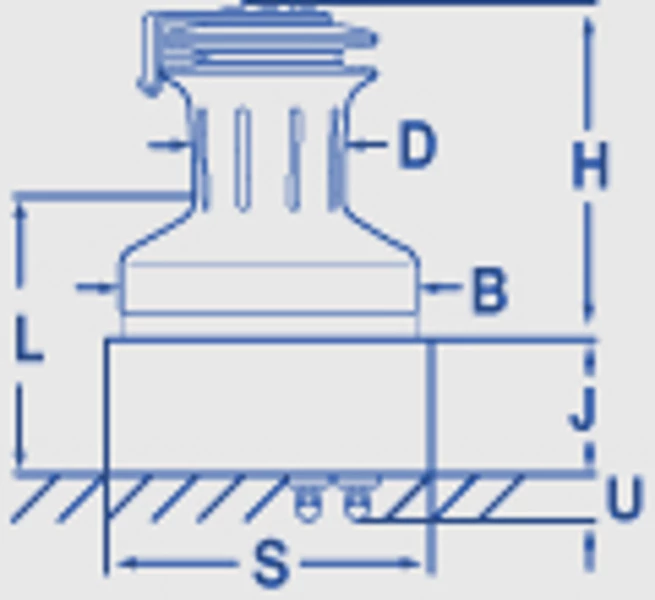

• Drum diameter D: 140 mm
• Base diameter B: 280 mm
• Height H: 280 mm
• Line Entry L: 208 mm
• Line Size: 10-18 mm
• Weight: 51 kg
• Max Deck K: 45 mm
• Motor Depth J: 88 mm
• Motor diameter S: 282 mm
• Motor Depth U: 40-75 mm

ANDERSEN Winches® Above and Below Deck Electric Compact Motors for
28ST/34ST/40ST/46ST/50ST/52ST/58ST/62ST/68ST/72ST Manual
