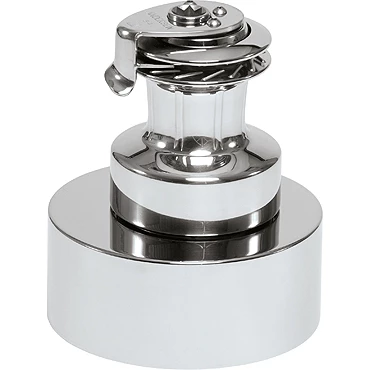

ANDERSEN 34ST Full Stainless Electric Winch Compact Above Deck 24V

Impressive line speed and first-rate maximum load

Choosing the right equipment is an important job. It requires more
than just adding a motor. Careful consideration should be given to
all factors that have an impact on your sailing experience: boat
size, sailing conditions, crew and convenience. Often, the choice
is more complex than just the size of the motor. The source of
power is also important. Hydraulic or electric – or manual for
starters, and then growing with the challenge – the choice is
yours.

The ANDERSEN 34ST Full Stainless Electric Winch Compact
Above Deck 24V is specially developed for use as a winch
motor. This motor is highly efficient, with impressive line speed
and first-rate maximum load. The unit is extremely easy to install
and is, of course, compatible with the ANDERSEN Modular Power
System.

Compact, innovative design
This motor demonstrates why ANDERSEN Products are in a class of
their own. ANDERSEN developed the motor with the size and shape of
a winch in mind and then integrated the motor, gears and power
control to make one COMPACT unit. That means no extra control
boxes, all cables are connected directly to the unit. The motor is
built on an entirely new commutator principle using no carbon
brushes, resulting in the virtual elimination of wear and tear.
This new approach to motors also provides other advantages;
including 30-50% less power consumption compared to a conventional
electric motor.

ANDERSEN 34ST Full Stainless Electric Winch Compact Above
Deck 24V Features:

• Compact in design integrating motor, gears and power controls
  into one unit
• Impressive line speed and first-rate maximum load
• Easy to install
• Above Deck
• Winch mounted directly on the motor
• Motor built without carbon brushes eliminates wear and
  tear.
• 30-50% less power consumption compared to conventional electric
  motors

ANDERSEN 34ST Full Stainless Electric Winch Compact Above
Deck 24V Specifications:

• Drum diameter D: 70 mm
• Base diameter B: 125 mm
• Height H: 147 mm
• Line Entry L: 151 mm
• Line Size: 8-14 mm
• Weight: 16 kg
• Max Deck K: 45 mm
• Motor Height J: 85 mm
• Motor diameter S: 200 mm
• Motor Depth U: 40-75 mm
