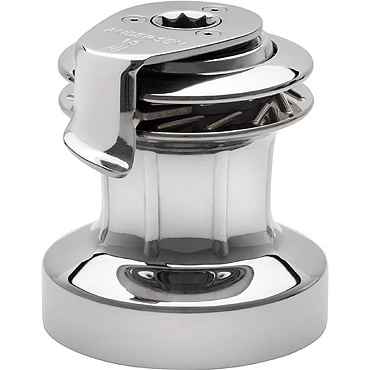

ANDERSEN 34ST FS Self-Tailing Manual Winch

Full Stainless. Beyond Good Looks

If you take pride in having your yacht look its best, the
ANDERSEN 34ST FS Self-Tailing Manual Winch creates
the dock-stopping appeal you desire. It combines all the
convenience and power of ANDERSEN’s self-tailing winch with a
stunning all stainless steel look. From top to bottom the drive
shaft stripper arm, self-tailing jaws, drum and upper and lower
trim rings are manufactured in highest quality and beautifully
polished grade 316 stainless steel. The dramatic result is a highly
reflective winch that becomes a highlight of the boat and a true
reflection of your yachting pride.

As with all ANDERSEN Winches, the Full Stainless Self-Tailing winch
features the exclusive stainless steel Power Rib drum for maximum
power and extended line life. This model also uses our exclusive
self-tailing device that automatically accommodates a wide range of
different line sizes.

Power Rib
ANDERSEN winch drums incorporate the distinctive Power Rib which
ensures a controlled grip on the line at all times, whether
trimming or easing. The highly polished stainless steel surface
minimises vertical friction and allows the loaded rope turns to
slide easily upward as the drum rotates, without the shuddering and
excessive rope wear seen on winches that rely on a rough surface
finish for grip. Stainless steel roller bearings and ball bearings
carry the highest drum loads to the centre stem of the winch,
minimising efficiency losses due to friction. The self tailing arm
can be rotated through 360 degrees for optimum positioning (40ST
and larger). Stainless steel self tailing jaws adjust automatically
to suit various rope sizes.

ANDERSEN 34ST FS Self-Tailing Manual Winch
Features:

• Polished grade 316 stainless steel
• Power rib drum
• Self tailing

ANDERSEN 34ST FS Self-Tailing Manual Winch
Specifications:

• Product code: RA2034010000
• Model: 34 ST FS
• Drum Ø: 70mm
• Base Ø: 125mm
• Height: 147mm
• Line entry: 65mm
• Line size: 8-14mm
• Weight: 4.1kg
• Gear ratio 1st speed: 1.3:1
• Gear ratio 2nd speed: 4.7:1
• Power ratio 1st speed: 9.5:1
• Power ratio 2nd speed: 33.8:1
