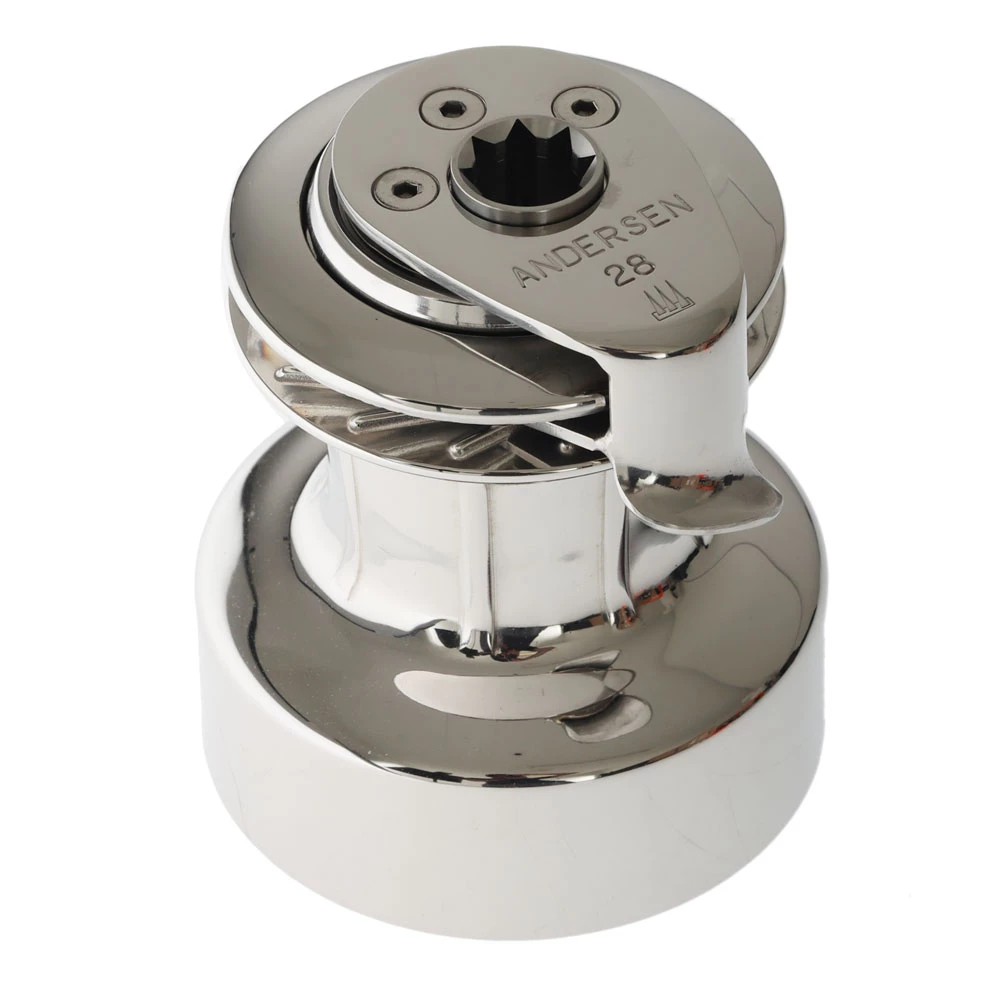

ANDERSEN 28ST Full Stainless 2-Speed Manual Winch

Make sailing more pleasurable

The ANDERSEN 28ST Full Stainless 2-Speed Manual
Winch features the Power Rib. Unlike other winches with
abrasive drum surfaces, ANDERSEN winch drums have vertical ribs
running up the surface. This combined with the smooth polished
stainless steel gives a maximum grip and minimum wear on ropes,
reducing the replacements costs of sheets and halyards. What’s
more, the Power Rib principle simply makes sailing more
pleasurable. Fewer turns on the winch make tacking easier. Sheets
can be gently eased out without harsh snatching and the risks of
overrides and jammed sheets are significantly reduced. The grip
provided by the ribs will remain the same year after year, unlike
many other winches with an abrasive or sandpaper-like surface. Such
surfaces have a tendency to wear down both ropes and
themselves.

Power Ratio
Power Ratio is the mechanical advantage of the winch and is
calculated as follows: length of handle x gear ratio/radius of
drum. The pull of the winch is based on the Power Ratio and not
just on the physical size of the winch or the diameter of the drum.
The Power Ratio is used to determine the load the winch may handle
as follows: pull of handle (kg x Power Ratio = pull of winch (kg).
This means that by applying a load of 10kg, using a 10′ standard
handle, on a Power Ratio 40:1 winch, the winch can pull 400kg,
assuming that the winch is 100% efficient. This is not possible in
practice as the efficiency is reduced by internal mechanical
friction losses.

ANDERSEN 28ST Full Stainless 2-Speed Manual Winch
Features:

• Compact in design
• Full Stainless Steel

ANDERSEN 28ST Full Stainless 2-Speed Manual Winch
Specifications:

• Drum diameter D: 70 mm
• Base diameter B: 125 mm
• Height H: 147 mm
• Line Entry L: 65 mm
• Line Size: 8-14 mm
• Weight: 3.9 kg
• Gear ratio 1st speed: 1.3 : 1
• Gear ratio 2nd speed: 4.0 : 1
• Power ratio 1st speed: 9.5 : 1
• Power ratio 2nd speed: 28.6 : 1
